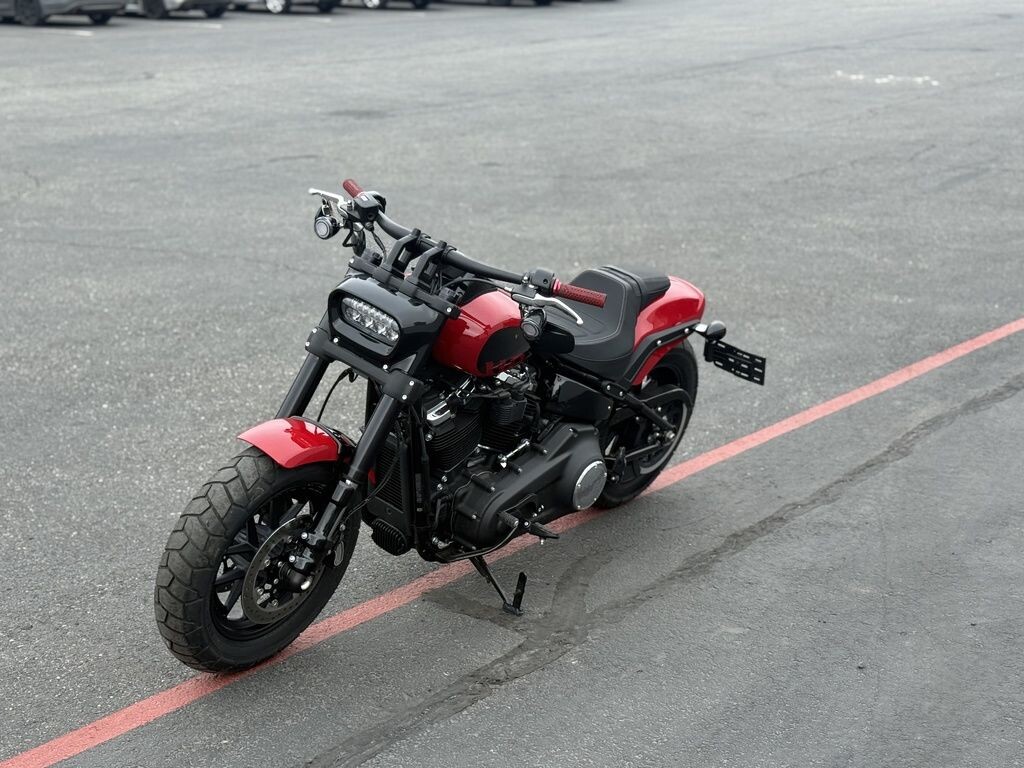

‹ Home › Inventory › FXFBS 2023 Fat Bob® 114

The Fat Bob® is all Harley-Davidson, but at the same time, it’s unlike any Harley® motorcycle that ever existed before. From the modern, aggressive look of its 2-1-2 upswept exhaust and tarmac-devouring fat tyres to the massive torque of the Milwaukee-Eight® engine to the ride of the Softail® frame, inverted front forks and easily adjustable rear suspension, it’s built to shake up the status quo. This is for the rider that wants to break new ground at a high rate of speed.

Specifications

Dimensions

add remove
- Length:

  92.1 in
- Seat height, unladen:

  28.0 in
- Ground clearance:

  4.7 in
- Rake (steering head):

  28
- Trail:

  5.2 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  150/80-16,71H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  3.5 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  653 lbs
- Weight, in running order:

  675 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.0 ft-lb
- Engine torque (RPM):

  3500
- Lean angle, right (deg.):

  31
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  43 mpg (5 l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  128 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Denim black, Structure cast aluminum with laser etched graphics
- Wheels, rear type:

  Denim black, Structure cast aluminum with laser etched graphics
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:

  4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
