‹ Home › Inventory › FXLRS 2025 Low Rider™ S

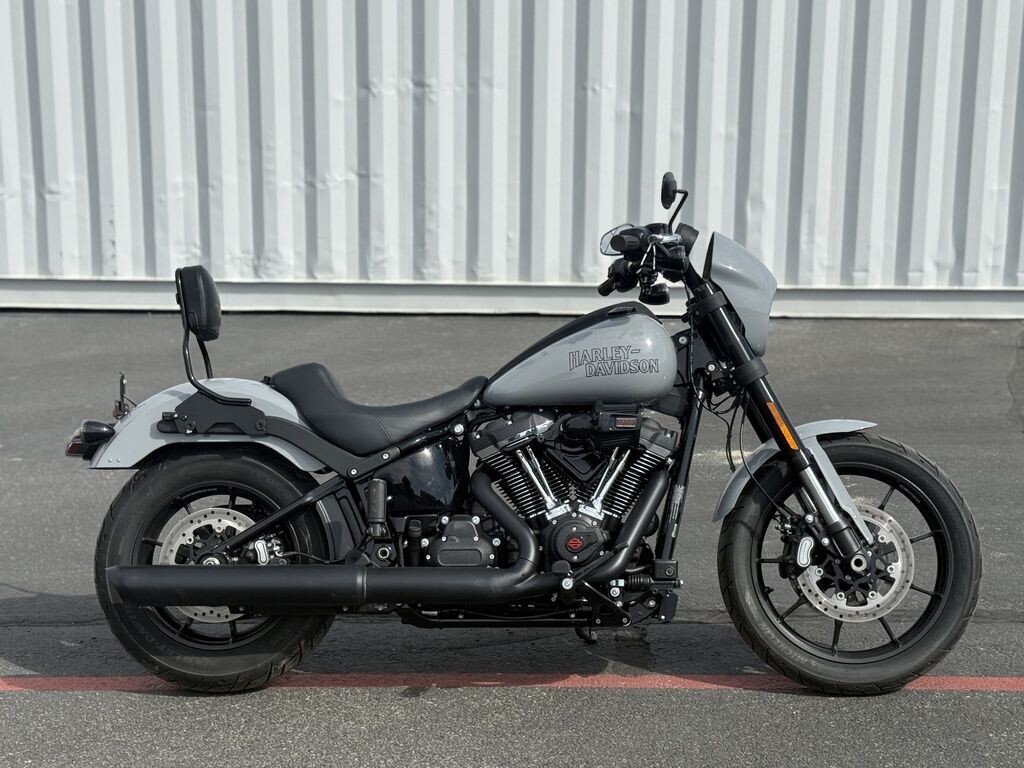

With bold styling, an aggressive stance, and unrelenting power from the Milwaukee-Eight^® 117 High Output engine, the Low Rider S is a custom-style cruiser that is ready to rip from the factory.

Specifications

Dimensions

add remove
- Length:

  92.9 in
- Seat height, unladen:

  28.1 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  644 lbs
- Weight, in running order:

  670 lb
- Tire, type:

  Michelin® Scorcher 31, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 High-Output
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  128.3 ft-lb
- Engine torque (RPM):

  4000
- Horsepower:

  114 HP / 85 kW @ 5000 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
